       Shimpo  |  potter´s wheels  |  pug mills  |  equipment  |  potters needs  |  ceramics   All for dreams
logo shimpo pro evropský trh


motor 400 W, 230 V, brushless

speed 0 - 250 rpm

capacity ca. 40 Kg *

wheelhead 300 mm

noise level 30 dB

weight 45 kg

detailed technical features odkaz

current price (see pricelist) PDF.PDF

product catalogue PDF.PDF

Shimpo RK-3D Shimpo 3K-3D
Shimpo RK-3D


Potter´s wheel SHIMPO RK-3D is a free-standing model and at the first sight it looks like the legendary model RK-10 which is not produced any more. However, the robust “boxing” design is the only thing these two models have in common. This model is sometimes called “a modern wheel in the traditional coat”.

Brushless 400 W motor used is quiet and has great power. Today the connection "Direct drive" help "Direct drive"
Motor is situated directly under the upper wheelhead and its axis is directly connected to it.
of the motor and the wheelhead is a matter of fact with most models of Shimpo wheels. It is absolutely vibration-free, it has great efficiency even with relatively low energy input and there is no fear of slipping the belt out with high load of the wheelhead. With extremely low noise level of 30 dB help 30 dB
The noise level similar to quite quiet computer, you will not distrub anyone while working.
is among the quietest wheels on the world market. The wheelhead is made from light aluminium alloy, with the diameter of 300 mm and is equipped with centring slots. The speed is regulated with firmly attached foot pedal, eventually hand lever attached to it. Inbuilt overload protection protects the wheel from various damages. As a matter of course it is possible to change the direction of rotation easily, left or right.

This model with its performance is comparable to RK-3E wheel, differing only in its design and related details. RK-3D wheel is not height adjustable and it cannot be used as a table top model. However, it has firmly attached pedal with hand lever, smaller wheelhead diameter (300 mm) and the extended part of the splash pan serves for putting aside tools. The wheel has an option of free wheelhead rotation at zero speed "Free Spin", due to that it can be used as a decorative wheelhead while decorating pottery.

RK-3D represents modern powerful machine and traditional design at the same time.

SHIMPO RK-3D advantages:
• traditional robust design • low weight (ca. 45 kg) – easy portability • unique system of electronic speed regulation – it does not reduce tension with great load and low speed • low energy consumption (230V/400W) • fluent, stepless speed regulation 0 - 250 rpm • no vibration or annoying noise • it is possible to adjust the leg with the screw • overload breaker • small size • reputable Shimpo quality • extremely low noise level (30 dB) • two-piece splash pan for easy cleaning • easily changeable direction of rotation (clockwise /counter clockwise) • brushless motor• maintenance-free thanks direct drive and brushless motor • high turning moment with each speed • excellent ratio: price/performance • high construction efficiency (power match to ca. 750W common motors) • rubber handles for easy transport • constructed for high load • reliability • wheel without seat – suitable for wheelchair users, easy operation • CE mark •

Detailed product picture:

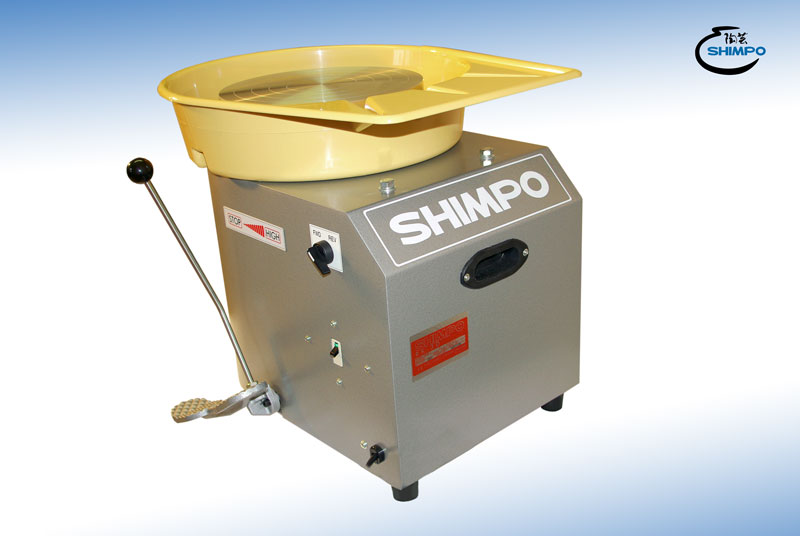

Detailed picture of Shimpo RK-3D

* approximate capacity, dependant on many circumstances (style of rotating, shape of a product, consistency and type of material, etc.)
